Fascia Double Rods
How it works – Double Rods
Morgik has created a way to hide your motorized tracks with our decorative metal fascia rods. Available for both Lutron and Somfy motorized tracks, our metal fascia covers and brackets allow you to install the motorized tracks and then add a round or square metal cover.
For a double motorized track simply install our brackets, decide if you want same size fascia’s or if you want to combine the 2 different sizes and then attach your tracks and then secure our metal fascia covers. It is that easy. * Note that the maximum length of our fascia covers is 116” without a splice. With splice brackets and covers, there is no limit to the overall length that can be done.

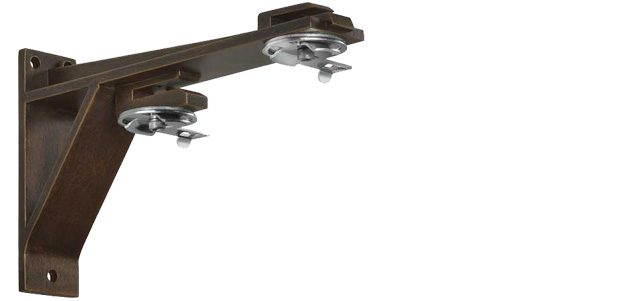

Install selected double brackets
(Splice bracket needed if motorized track is spliced)
Fascia Brackets page →
Recommended to install brackets approximately every 36” – 42” maximum.

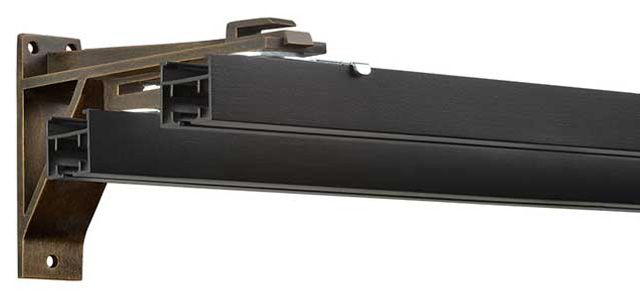

Attach your Lutron or Somfy motorized track using manufacturer’s ceiling swivel clips
(Motorized track supplied by other)

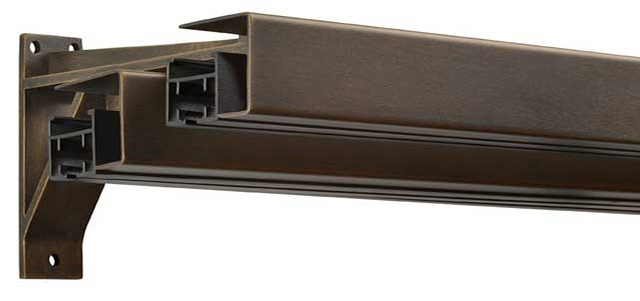

Secure the metal fascia covers to the bracket to cover the motorized tracks
(Fascia covers available in both round and square profiles. Back fascia sits 1/2″ lower than front fascia)

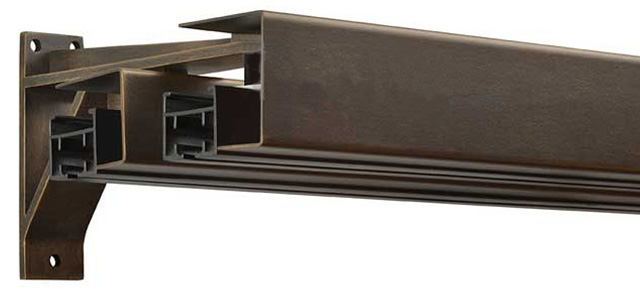

Combine 2″ front fascia and 1 1/2″ back fascia to align bottom of fascias and motorized tracks
